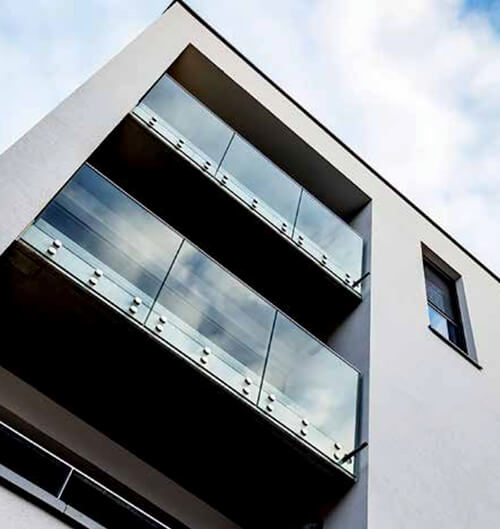

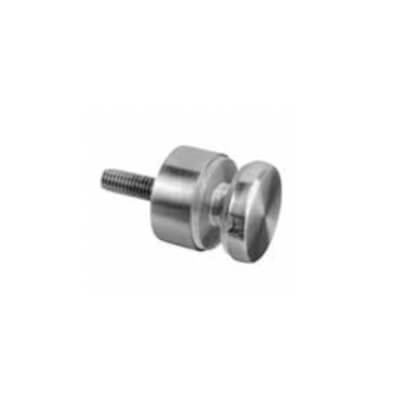

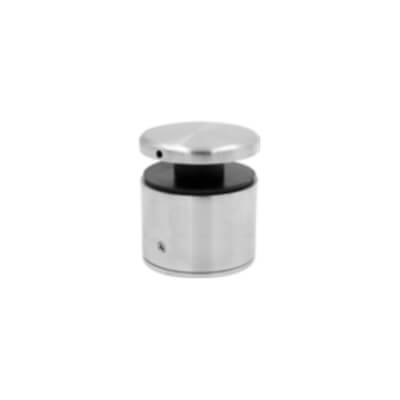

Othello Point Fixings

PLEASE NOTE: Measurement is taken from outside of profile to outside of profile.

Skyforce Top Mount according Test BS 6180 (0,74 kN/m)Tested to Aluminium

GLASS WIDTH UP TO	GLASS THICKNESS (tempered glass)	GLASS HEIGHT
1000mm	12.76mm	300mm – 1100mm
1700mm	16.76mm	300mm – 1100mm
3000mm	21.52mm	500mm – 1100mm

(According test BS 6180) Tested on the basis that the minimum thickness of the aluminium frame is 1.4mm.   FIXING TO PVC FRAME SkyForce Top Mount Tested to Plastic According to the German Standard ETB Directive

GLASS WIDTH UP TO	GLASS THICKNESS (tempered glass)	GLASS HEIGHT
1600mm	12.76mm	700mm-1200mm
2100mm	16.76mm (17.52)	900mm-1200mm
2600mm	21.52mm	800mm-1100mm

Tested on the basis that the metal insert in the frame is a minimum of 1.5mm in thickness. I attach a copy of the test report which is in German but which I think we can include anyway.   FIXING TO STEEL OR CONCRETE Skyforce is fully tested at a height of 1.1m up to a width of 3m when fixed to steel or concrete.

Glass	H = Glass Height	L = Glass Length	Working Line Load
6.62	min. 300mm - max. 1100mm	max. 1100mm	3.0 kN/m
6.62	min. 500mm - max. 1100mm	max. 1100mm	3.0 kN/m
8.84	min. 300mm < 500mm	max. 1100mm	3.0 kN/m
8.84	min. 500mm - max. 1100mm	max. 1100mm	3.0 kN/m
8.84	min. 600mm - max. 1100mm	max. 1700mm	1.5 kN/m
8.84	min. 300mm < 600mm	max. 1700mm	0.74 kN/m
10.10.4	min. 300mm < 500mm	max. 500mm	3.0 kN/m
10.10.4	min. 500mm - max. 1100mm	max. 1100mm	3.0 kN/m
10.10.4	1100mm	max. 3000mm	0.74 kN/m
10.10.4	min. 300mm < 1100mm	max. 3000mm	0.36 kN/m

FIXED TO TIMBER OR STONE/BRICKWORK   No test data available.   For more comprehensive test data, click here
